Beaker

System Page Improvements

Author:Dan Callaghan
Status:Implemented
Release:19

This document proposes rearranging the system page to replace the system form with three “quick info” boxes. The goal of the quick info boxes is to show the most important facts about the system and to give quick access to the most common operations, while occupying a very small amount of vertical space. The interface elements previously contained in the system form will be grouped in tabs below.

Background and rationale

The system form — the set of fields arranged in two columns at the top of the system page — has existed since Beaker’s inception as Medusa, a lab inventory tracking system. The system form is the original basis of the page, and has always been its focal point. Over the years of Beaker’s growth, additional functionality has accumulated either in tabs below the system form or as extra interface elements cluttered inside the form itself.

As a result, the system form conveys a disorganized assortment of data about the system, of which only a small amount is relevant for any given workflow on the page.

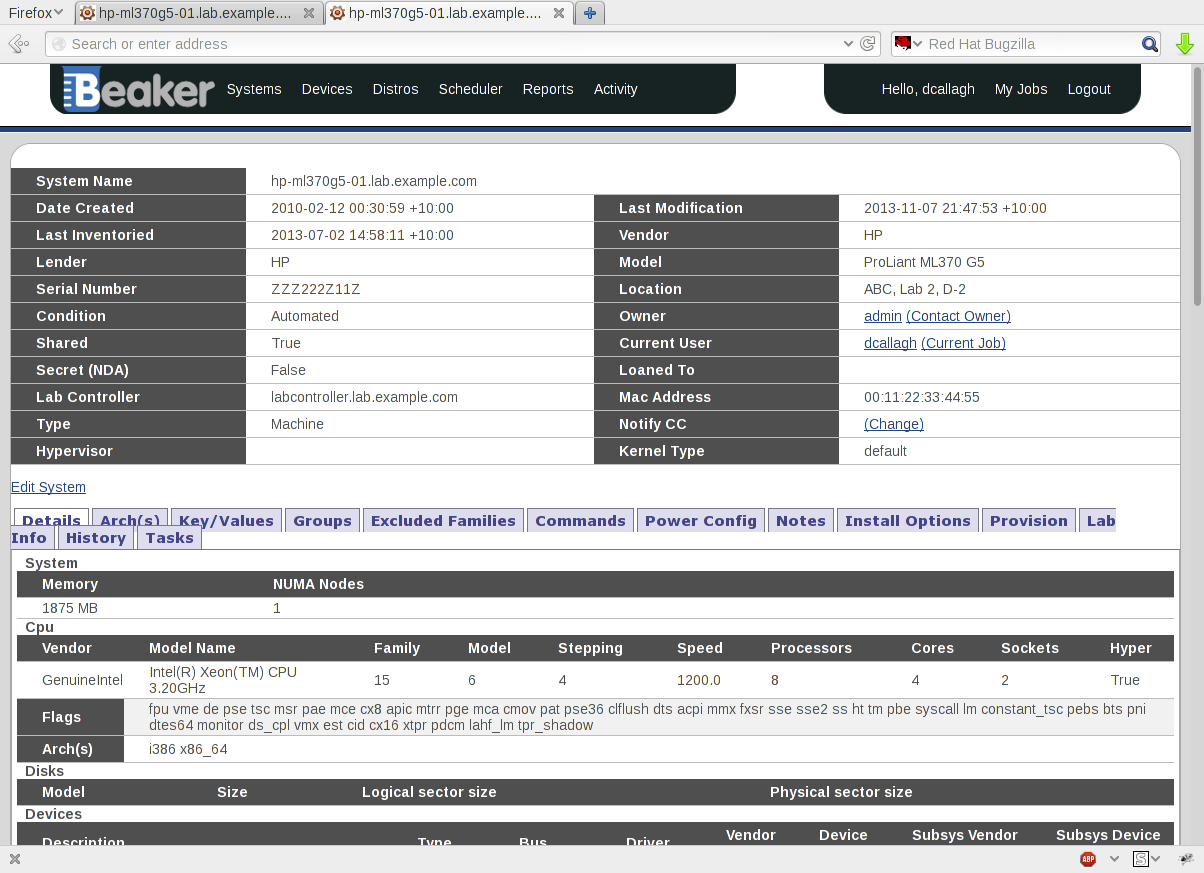

[screenshot of system page in Beaker 0.14]

An example of the system page in Beaker 0.14.

Due to the more generous form spacing introduced by Bootstrap in Beaker 0.15, the system form now occupies even more vertical space than it did before. This change only served to highlight how much irrelevant information was being shown at the top of the page (see for example bug #1015100).

It has also been recognized for a long time that TurboGears 1.x widgets are not working for us. We can deliver a smoother, more efficient, and more functional experience by using a modern approach where HTML rendering is handled (at least partially) on the client side. This approach is only practical since Beaker’s technology stack was upgraded in version 0.15 to use Flask on the server side and Bootstrap for client-side styling.

Mitigating impacts on screen scraping

The Beaker developers are aware that users have been forced to rely on scraping the system page in the past, due to the poor coverage of Beaker’s API for systems. Unfortunately the proposed changes to the system page will substantially alter the HTML produced by the server, which may impact any screen scraping scripts.

During the 0.15.x release series the developers introduced a number of new bkr subcommands for managing systems. These commands, along with the existing system-related subcommands, can be used instead of scraping the system page.

  • Commands for viewing and manipulating access policies, which replaced group-based access control in Beaker 0.15.0: bkr policy-list, bkr policy-grant, bkr policy-revoke
  • Commands for manipulating loans, added in Beaker 0.15.2: bkr loan-grant, bkr loan-return
  • A command to fetch the status of a system (its condition, current reservation details, and current loan details), added in Beaker 0.15.3: bkr system-status

UI changes

This section describes the proposed UI changes in detail.

All new user interface elements described here will use the Backbone JavaScript library to coordinate client-side rendering and updates. The client-side widgets fetch data from the server in JSON format and make asynchronous calls to update the server state without refreshing the page.

Quick info boxes

There are three quick info boxes, displayed side-by-side at the top of the system page. See the screenshots below for an example.

The left-hand quick info box shows a summary of the system’s hardware: vendor, model, CPU, and memory. It also indicates whether remote power control is available. In a future release it could also indicate whether remote console is available (currently Beaker does not record this information). The goal of this box is to quickly answer the question: “What is this system, and can it do what I need?”

The middle quick info box shows a summary of the system’s health: current condition, condition report (if any), and number of recent aborted recipes. For the system owner, this box also contains a quick action button to remove the system from service (set its condition to Broken). For other users, it contains a button to send a problem report to the owner. The goal of this quick info box is to quickly answer the question: “Is this system healthy right now?”

The right-hand quick info box shows a summary of the system’s usage: current loan, current user, and reservation length. It also contains a quick action button which allows one of the following operations, depending on the current state of the system and the user’s permissions: Take, Return, Borrow, Return Loan, Request Loan. The goal of this quick info box is to quickly answer the question: “Can I use this system right now?”

Vertical tabs

The number of tabs on the system page has only grown over the years as features have been added to the page, and extracting functionality from the system form would require adding even more tabs. The horizontal tabs in Beaker 0.14 were already wrapping to two lines at many common browser widths. Therefore, the tabs were converted to a vertical “nav list” Bootstrap component with the tab content displayed beside. (This change was previously not possible using the TurboGears 1.x Tabber widget.)

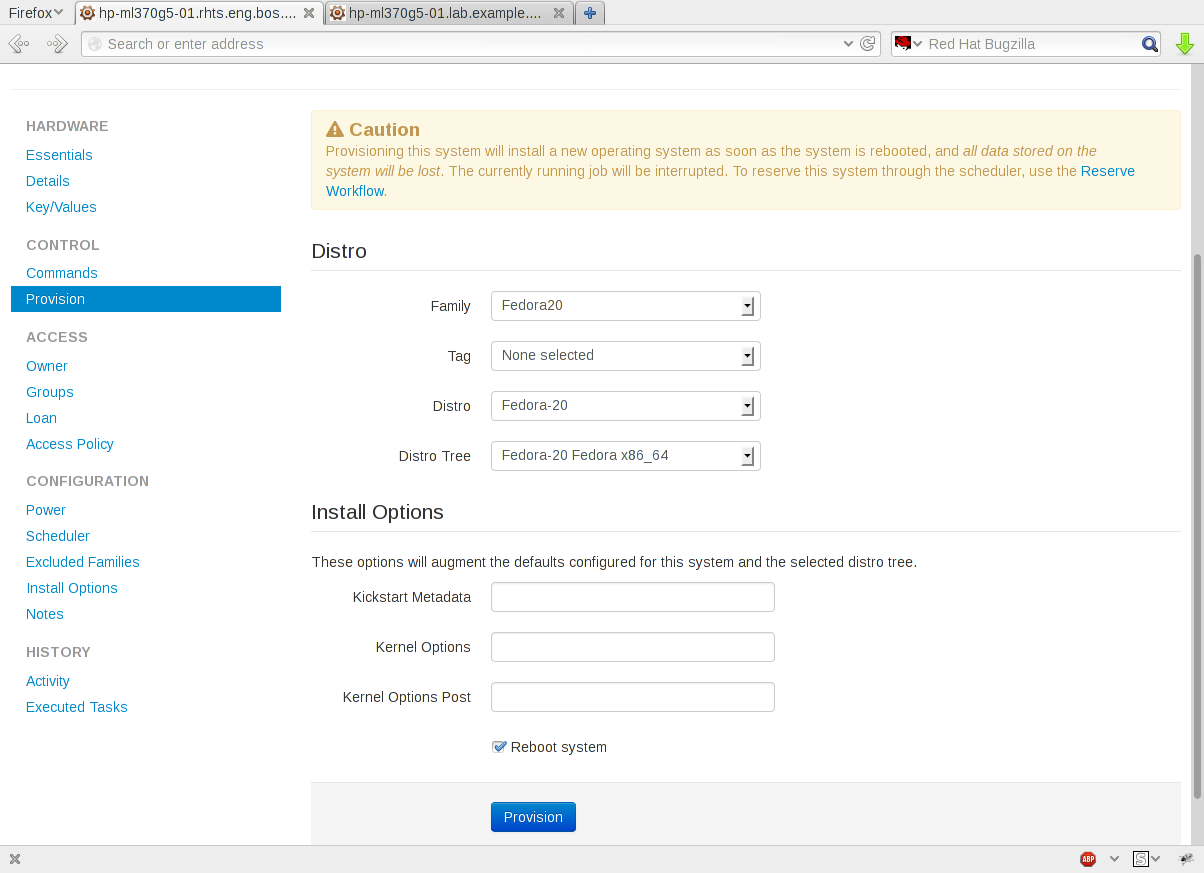

The vertical tabs are visible in the screenshots below.

New Hardware Essentials tab

A new tab, Hardware Essentials, contains the following fields which previously lived in the system form and held “essential” information about the system’s hardware:

  • Lab controller
  • Location
  • Lender
  • Kernel type

The tab also contains a field for Supported Architectures, replacing the Arches tab.

Here “essential” means information that the system owner fills in when registering the system in Beaker, as opposed to the hardware information on the Hardware Details tab which describes the internals of the system and is populated by Beaker’s inventory script.

Beaker users will typically not be interested in the fields on the Hardware Essentials tab, so the target audience for this tab is primarily system owners.

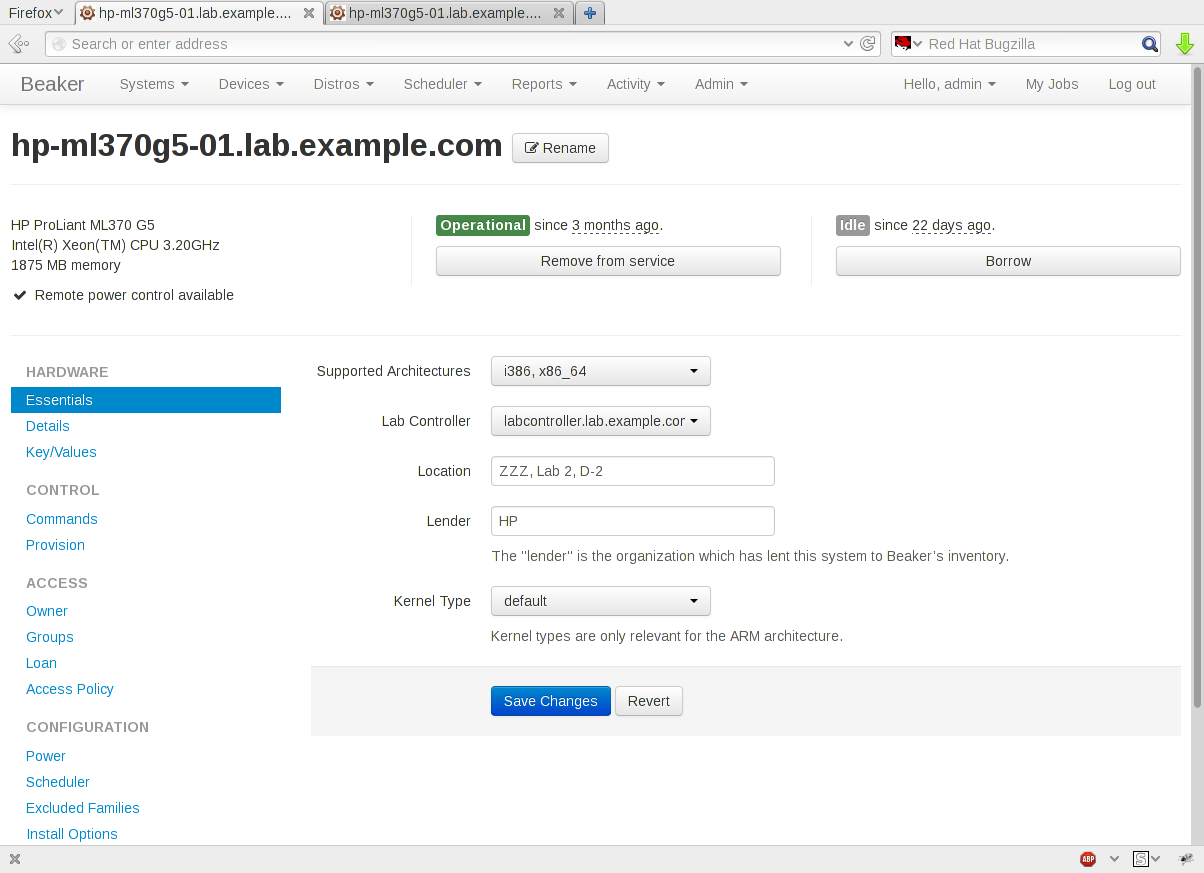

[screenshot of proposed Hardware Essentials tab]

Expanded Hardware Details tab

The following fields from the system form now appear on the Hardware Details tab instead. These fields describe internal hardware information about the system, and can (or should) be populated automatically by Beaker’s inventory script.

  • Host hypervisor
  • Vendor
  • Model
  • Serial number
  • MAC address

In addition, it is now possible to edit hardware details in the System section (which is the above fields plus the two existing Memory and :guilabel`NUMA Nodes` fields).

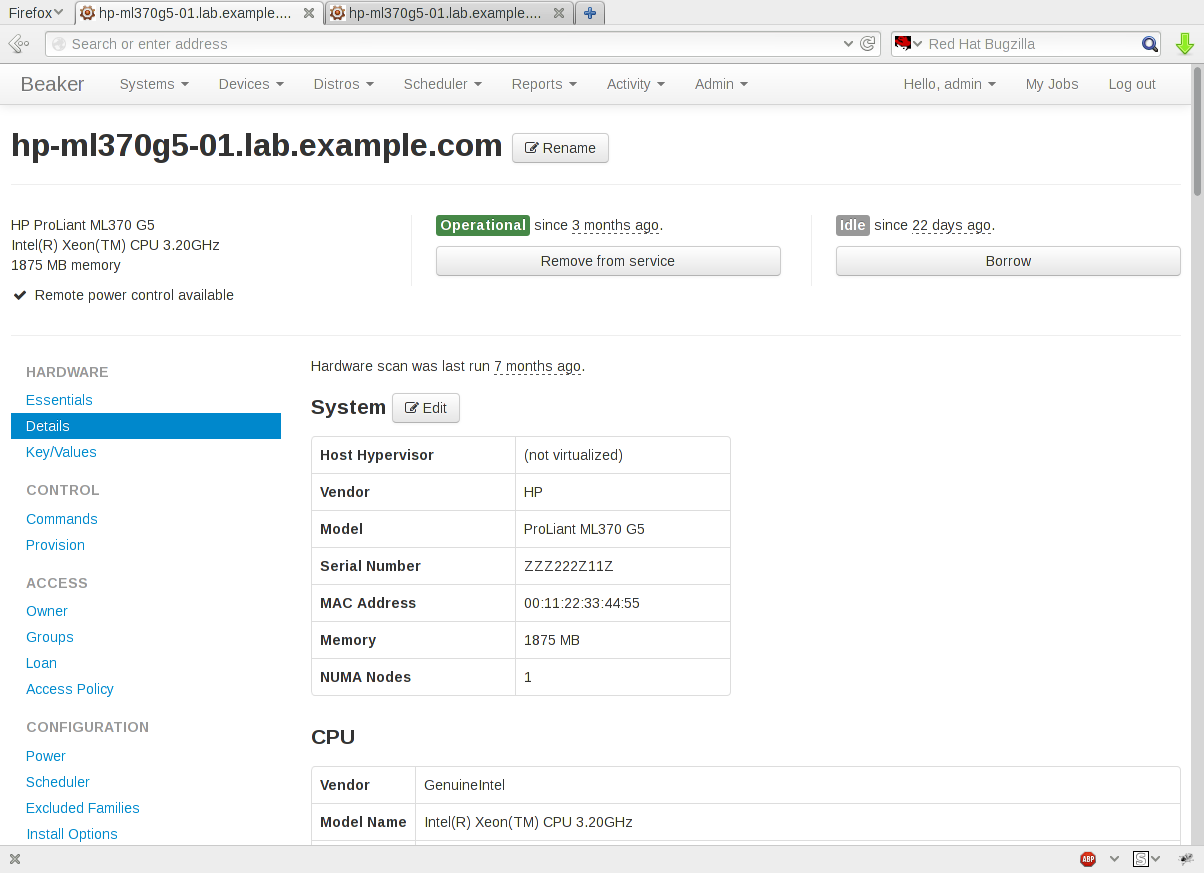

[screenshot of proposed Hardware Details tab]

New Owner tab

A new Owner tab displays the system’s current owner and notify CC list. These fields previously lived in the system form. The system owner can change the notify CC list or give the system to another user from this tab.

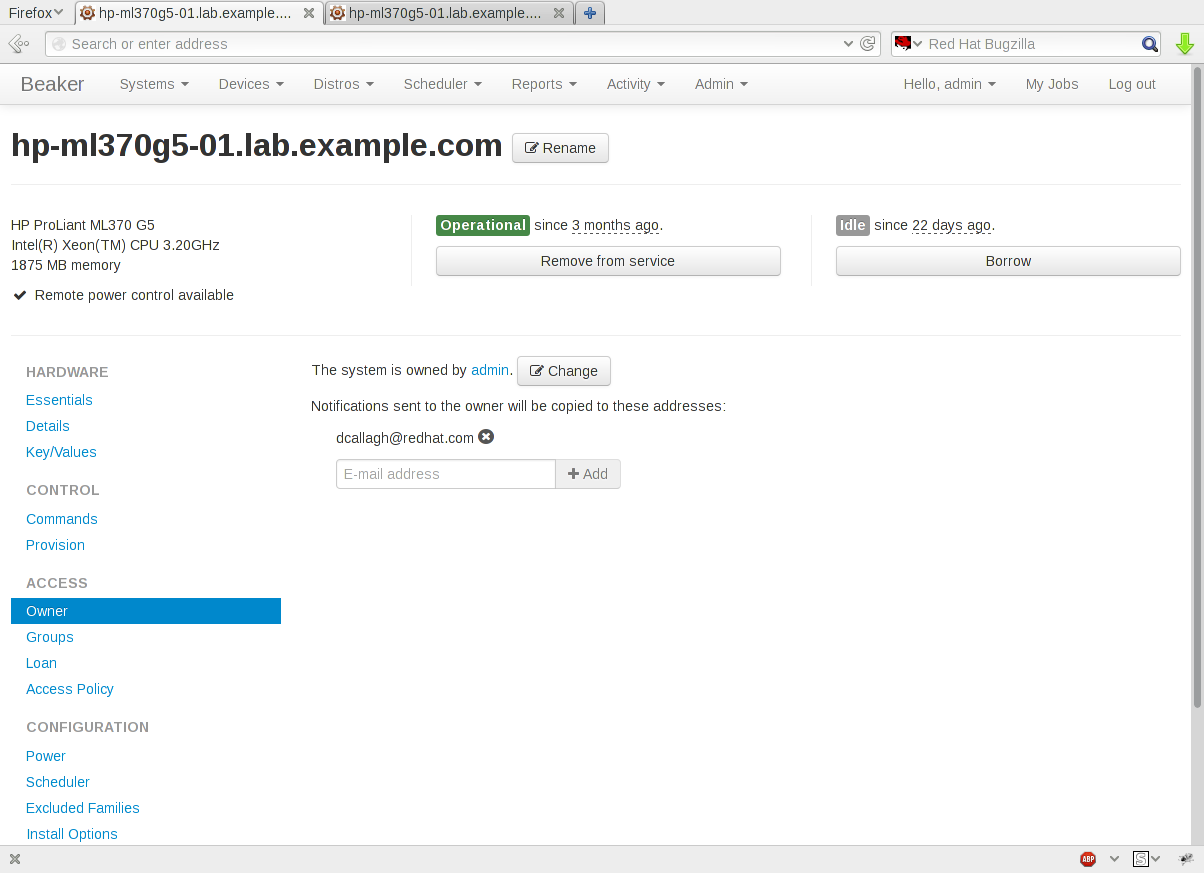

[screenshot of proposed Owner tab]

New Loan tab

A new Loan tab displays the current loan state of the system, including any comment which was recorded. Users can borrow, return, or lend the system (according to their permissions). Any user can also request a loan from this tab. A modal is shown for lending the system, but all other operations require a single click.

This tab replaces the loan field and the associated Loan Settings modal window from the system form, as well as the loan request form which was previously accessed by clicking Contact Owner in the system form.

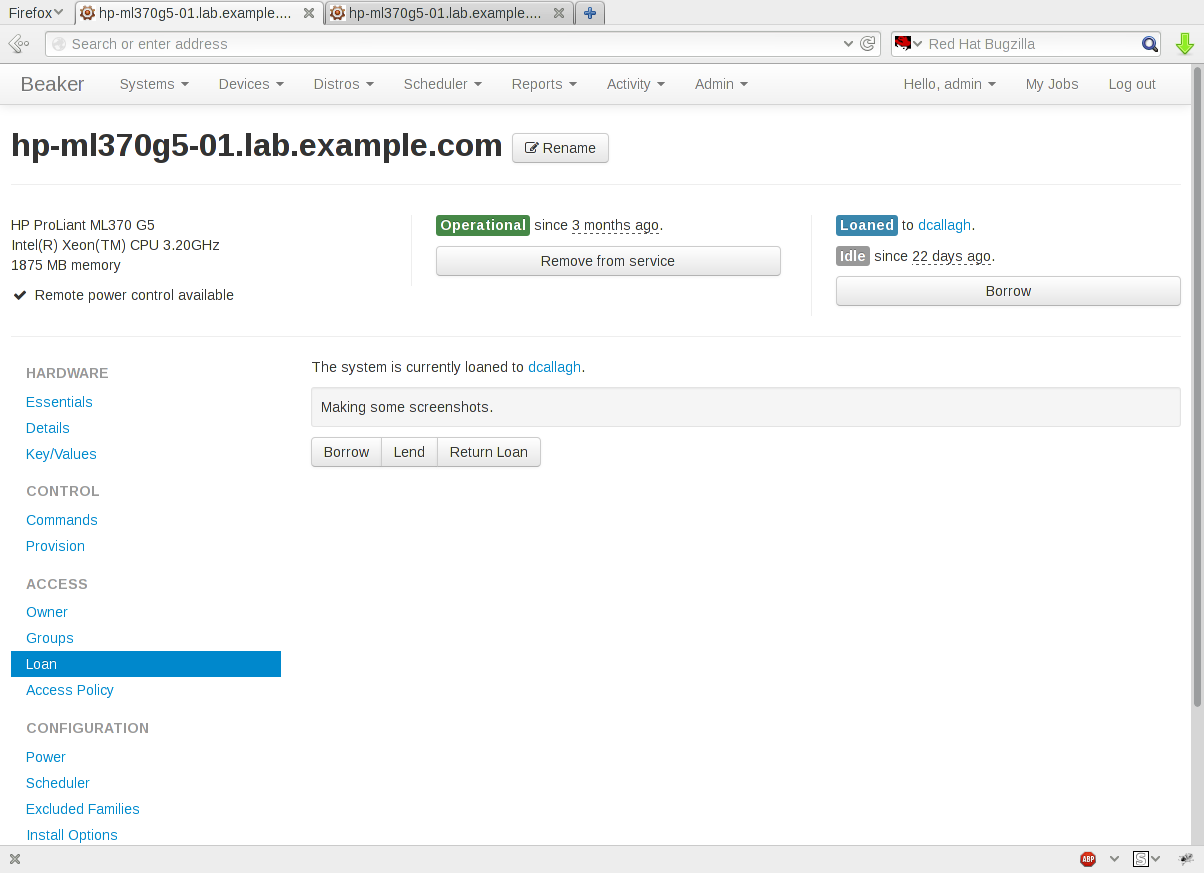

[screenshot of proposed Loan tab]

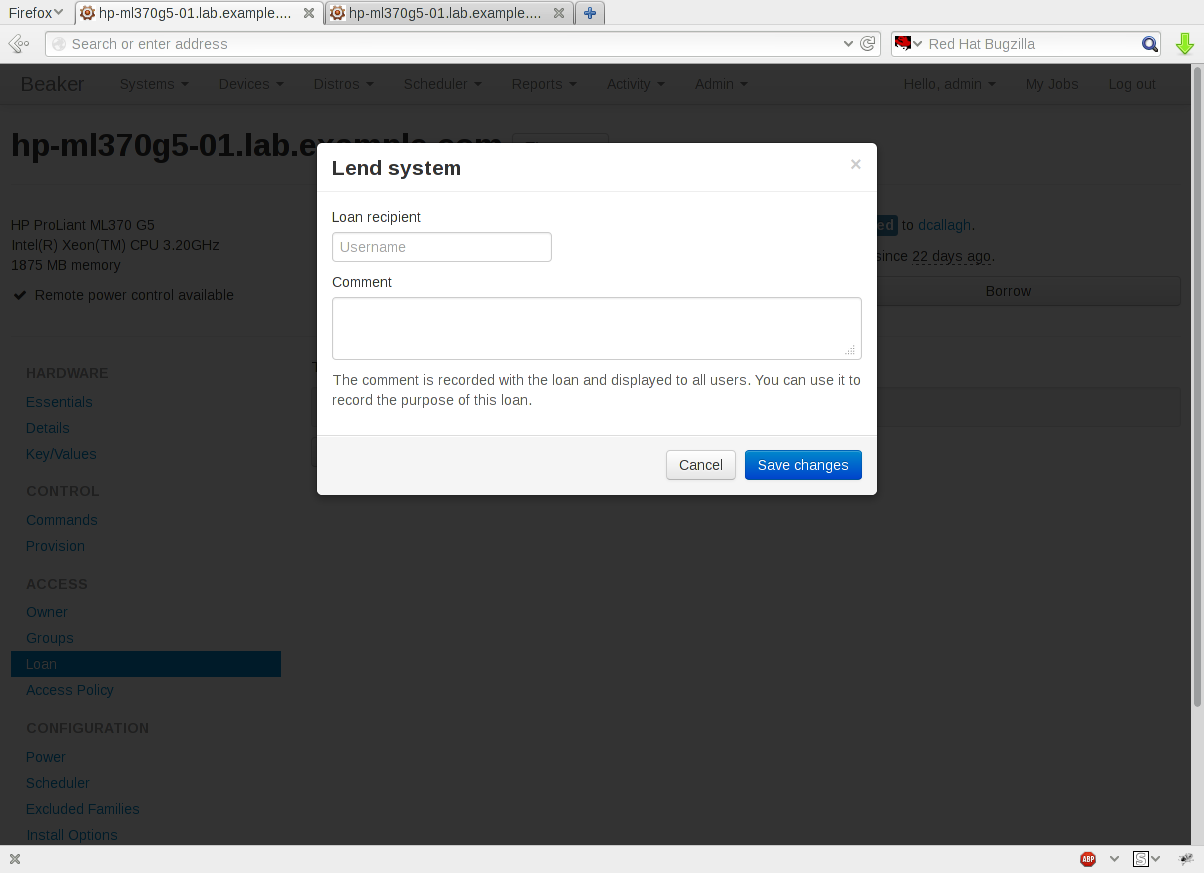

[screenshot of proposed Lend modal on Loan tab]

New Scheduler Configuration tab

Lastly, for want of any better place to put them, these three fields from the system form which relate to how the scheduler handles the system are placed in a new Scheduler Configuration tab:

  • Condition
  • Condition report
  • Type

Like the Hardware Essentials tab, these fields are typically only of interest to the system owner.

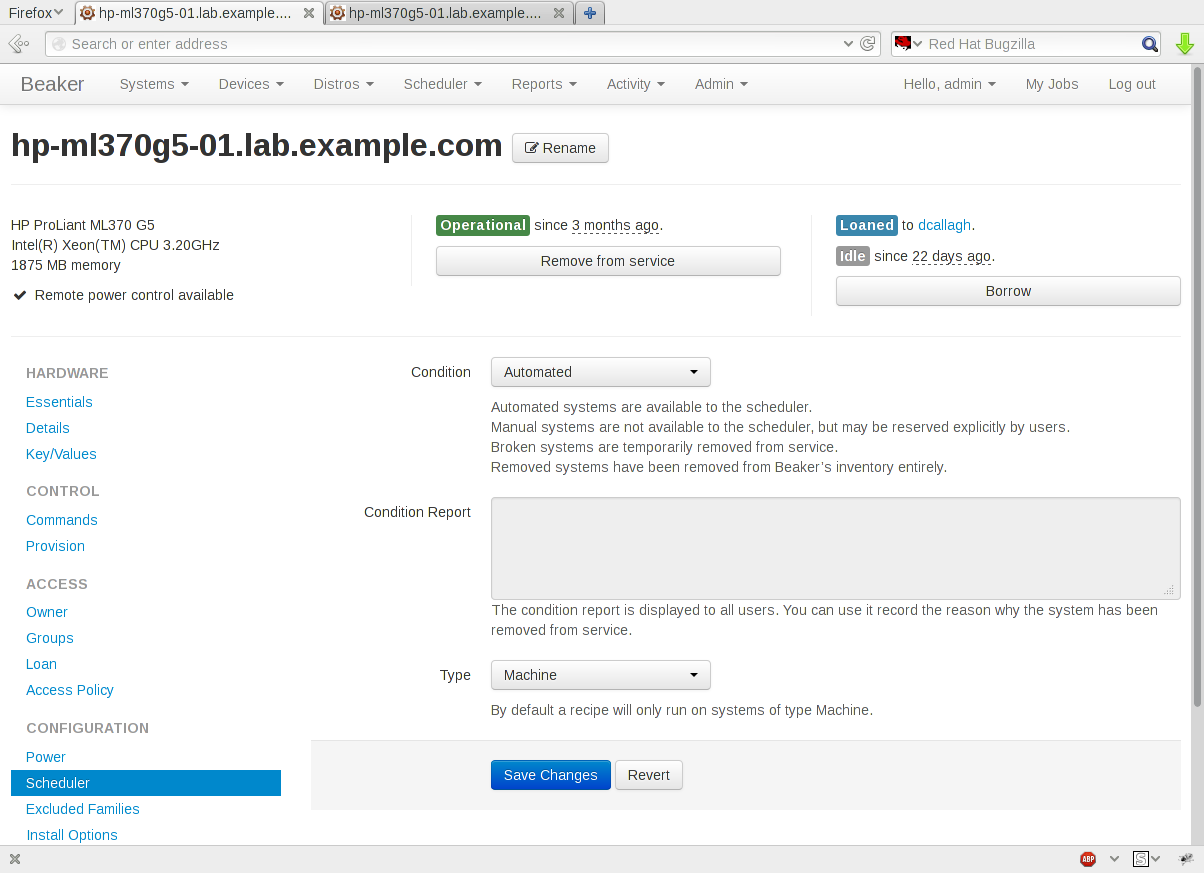

[screenshot of proposed Scheduler Configuration tab]

Benefits of the improved system page

As well as fixing the immediate issues with the system page layout, the proposed changes will address a number of other long-standing flaws or shortcomings in the system page.

The system page has historically been one of Beaker’s largest and most expensive pages to render, due to the amount of markup produced for all the widgets on the page. This proposal reduces the page size substantially, which will improve page load times for users.

Furthermore, the new system page widgets update the page in place when a change is made, avoiding an expensive page refresh for every action. They use clearer and more consistent indications of progress, success, and failure. For example, power commands appear in the command queue as soon as they have been enqueued, without re-fetching the entire system page.

The complete command queue will now be browsable in a grid on the Commands tab. Previously this was impossible due to the limitations of the TurboGears 1.x @paginate decorator.

In future, once all widgets are taking advantage of the new asset packing introduced with Beaker 0.15, it will also be possible to reduce the number of HTTP requests needed to load the system page. Currently this has a very large impact on the first load time for Beaker pages. This proposal does not solve the problem but makes large strides towards an eventual solution.

This proposal also takes small steps towards a more consistent and user-friendly interface across Beaker’s entire web UI. All new system page widgets will adhere to Beaker’s evolving user interface guidelines, which were drafted as part of the work on this proposal.

The following user interface bugs/RFEs will be solved by the system page improvements:

  • #692777 add a “duration” function on taken machines
  • #884399 cannot remove default install options when provisioning a manual system
  • #980352 no failure message when system update status can’t be saved
  • #999391 loaning system to unknown user produced error 500
  • #999444 “Loan Settings” does not work on edit system page
  • #1009323 after someone tries to edit the system which he doesn’t have permission, browser should show the origin page instead of homepage
  • #1009333 Beaker shows 500 error when someone tries to loan one system to others, but he only has loan-self permission
  • #1011284 button “Loan Settings” disappeared after clicking button “Return Loan”
  • #1011293 admin could see the button “Return Loan”, even there is nobody was loaned to
  • #1020107 changing loan settings does not automatically update the system page
  • #1037280 meaning of “Hypervisor” field is not clear

Deferred improvements

This proposal does not cover upgrading any of the existing tabs on the system page which are not affected by the removal of the system form. These tabs will retain their existing TurboGears 1.x style of behaviour: each operation triggers a page refresh and a TurboGears flash message to indicate success or failure.

This proposal involves adding a number of new server-side interfaces for working with systems. They will be considered an internal Beaker implementation detail until they have been fleshed out and stabilized in a future release, at which point they may become public interfaces.
